STANDARD LOAD
BINDERS L-150 |
 |
|
Min-Max Chain
Size
(in.) |
Working Load
Limit
(lbs.) |
Proof
Load
(lbs.) |
Ultimate Load (lbs.) |
Weight Each
(lbs.) |
Handle Length
(in.) |

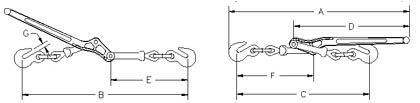

尺寸 ( 英寸 ) |
|
A |
B |
C |
D |
E |
H |
G |
|
1/4-5/16 |
2200 |
4400 |
7800 |
3.52 |
11.42 |
18.5 |
17.3 |
14.17 |
11.42 |
8.27 |
8.07 |
.35 |
|
5/16-3/8 |
5400 |
10800 |
19000 |
8.37 |
15.43 |
25.2 |
23.2 |
19.49 |
15.55 |
11.22 |
11.22 |
.51 |
|
3/8-1/2 |
9200 |
14800 |
28000 |
12.11 |
17.24 |
28.5 |
26.38 |
22.05 |
17.64 |
12.99 |
12.20 |
.59 |
|
33000 |
12.2 |
17.24 |
28.5 |
26.38 |
22.05 |
17.64 |
12.99 |
12.20 |
.59 |
|
1/2-5/8 |
11000 |
22000 |
44000 |
19.7 |
21.00 |
33.86 |
30.12 |
25.87 |
20.87 |
14.37 |
14.37 |
.74 | |
|
 |
|
|
|
|
