HSH-A 622 Series Lever Block CB001
|
Model |
|
HSH-0.75A |
HSH-1.5A |
HSH-3A |
HSH-6A |
HSH-9A |
|
Capacity |
tons |
0.75 |
1.5 |
3 |
6 |
9 |
|
Standard lift |
m |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Running test load |
Kn |
11 |
22 |
37.5 |
75 |
112.5 |
|
Effort required to lift rated load |
N |
140 |
220 |
320 |
340 |
360 |
|
Strands of load chain |
|
1 |
1 |
1 |
2 |
3 |
|
Load chain diameter |
mm |
6 |
8 |
10 |
10 |
10 |
|

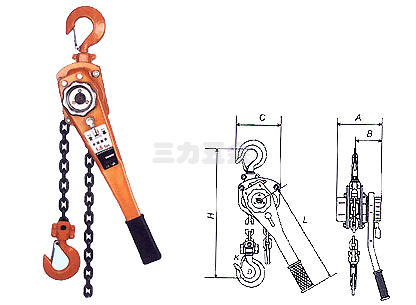

Dimensions(mm) |
A |
|
148 |
172 |
200 |
200 |
200 |
|
B |
|
90 |
98 |
115 |
115 |
115 |
|
C |
|
136 |
160 |
180 |
235 |
320 |
|
D |
|
40 |
45 |
58 |
64 |
85 |
|
H |
|
325 |
380 |
480 |
620 |
700 |
|
L |
|
280 |
410 |
410 |
410 |
410 |
|
K |
|
34 |
38 |
48 |
52 |
58 |
|
Net weight |
kg |
7 |
11 |
21 |
31 |
46 |
|
Packing measurement |
cm |
36x12.5x16 |
50x13.5x19 |
54x17x21.5 |
54x18x21.5 |
82x32x21.5 |
|
Extra weight per metre of extra lift |
kg |
0.8 |
1.4 |
2.2 |
4.4 |
6.6 | |
|
 |
|
|
|
|
