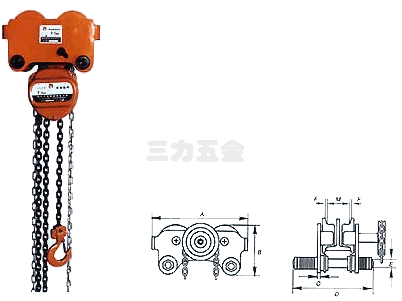

Combined Hoisting Assembly CB010
|
Capacity |
tons |
0.5 |
1 |
2 |
3 |
5 |
|
Test load |
Kn |
7.5 |
15 |
30 |
45 |
75 |
|
Min.Radius of curve |
m |
0.9 |
1 |
1.2 |
1.4 |
1.6 |
|
pulling force to lift full load |
N |
24 |
40 |
70 |
65 |
100 |
|
Standard lift |
m |
3 |
3 |
3 |
3 |
3 |
|
Dimensions(mm) |
A |
|
238 |
277 |
302 |
363 |
436 |
|
B |
|
137 |
170 |
194 |
230 |
260 |
|
C |
|
8 |
10 |
12 |
14 |
18 |
|
D |
|
278 |
283 |
295 |
304 |
330 |
|
E |
|
M18 |
M22 |
M27 |
M30 |
M42 |
|
F |
|
~3 |
~3 |
~3 |
~3 |
~3 |
|
I-Beam recommended |
mm |
50-180 |
58-180 |
58-180 |
74-180 |
98-180 |
